Bending beam torque wrench

Bending beam torque wrenches typically include a resilient beam and a rigid reference beam fixedly secured together at a work-engaging end of the tool. If it ever needs re-calibration just turn the pointer back to zero with pliers.

Ad Enabling you to solve the toughest problems in life science.

Bending beam torque wrench. Ad Use for Conveyor scales Platform scales Bench scales Silo Hopper and Tank Scales. Filling and Bagging Machines Force and Torque Measurements in Industrial Automation. Ad Enabling you to solve the toughest problems in life science.

Complete your research with top quality products. Bending beam torque wrenches typically include a resilient beam and a rigid reference beam fixedly secured together at a work-engaging end of the tool. When torque is applied to a workpiece by application of force at a handle end of the resilient beam the resilient beam deflects an amount which varies as a function of the torque applied.

US6463811B1 US09301207 US30120799A US6463811B1 US 6463811 B1 US6463811 B1 US 6463811B1 US 30120799 A US30120799 A US 30120799A US 6463811 B1 US6463811 B1 US 6463811B1 Authority. Beam Type Torque Wrench - 12 In Dr Fixed - 0 to 150 ft-lbs. Wrench directly measures a variety of torque values when tightening fastenersPointer moves clockwise or counterclockwise to measure torque in English and metricSatin finish scale reduces glareFoot-pound version has a comfortable palm-fit handle to provide.

Bending-beam wrenches are naturally more precise than click torque wrenches which until the beam becomes severely corroded can stay accurate indefinitely or before the beam snaps. A 150 ft-lb wrench has a typical specification of - 2 percent of full scale so the mistake could be 4 ft-lb at any torque. One of the simplest torque wrench is would be a beam style torque wrench.

Theres nothing to set on it you just tighten the bolt and as you do you watch the. Most small engine work I use a Craftsman 38 bending beam torque wrench think its 0-75ft. The fine print says torque wrenches are only accurate in the top end of their range so you dont want to use a 0-250ft wrench on rod cap bolts that are supposed to be 25-30ft.

A craftsman 38 drive bending beam for stuff in ft-lbs that have critical torque specs and a cheapo 14 bending beam for stuff in the in-lb range. If its worth using a torque wrench on its worth using a bending beam. Clickers are good for two things real heavy stuff to make sure its tight enough pretty hard to feel the difference between.

Beam torque wrenches bend a little while applying torque and its fine. These tools are designed this way. But whats important is that you position the socket with the bolt in the correct angle.

Positioning the socket in the wrong direction or angle can damage not only the bolts head but also the socket connector. A beam style torque wrench is considered a must-have tool by automobile enthusiasts. This device allows users to fasten nuts and bolts to the exact tightness specification called torque recommended by manufacturers.

Torque is simply the amount of direct force required to. Operating the direct-reading bending beam wrench is however simple and easy. When you apply force on the fastener the beam will bend to a certain degree with the pointer remaining straight and indicating on the scale the amount of torque that has been applied on the fastener.

The bending-beam torque wrenches are inherently more accurate than the click type and unless the beam gets seriously corroded will remain accurate forever or until the beam snaps. Typical specification is - 2 of full scale so the error could be off by 4 ft-lb at any torque for a 150 ft-lb wrench. Just so are split beam torque wrenches.

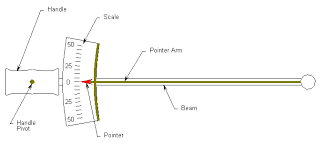

How does a beam torque wrench work. When the wrench is used to apply torque the lever bends and the indicating beam stays straight. Thus the end of the indicating beam points to the magnitude of the torque that is currently being applied.

This type of wrench. ARES 70214 - 38-inch Drive Beam Torque Wrench - 0-800 InchPounds and 0-90 NewtonMeter Torque Wrench - High Visibility Markings for Easy Readings 45 out of 5 stars 655 2834 28. Bending or deflecting beam torque wrench applies torque by bending its center beam.

Hence the name comes. This tool can keep its calibration forever unless you bump or drop it accidentally. If it ever needs re-calibration just turn the pointer back to zero with pliers.

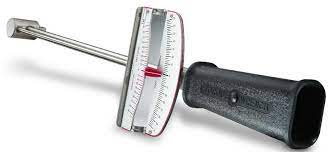

The disadvantage of this bending beam torque wrench is the difficulty of reading the scale. Detailed view of the torque display scale on a beam type torque wrench. This shows a torque of about 160 inlbf or 18 Nm.

The most basic form of torque wrench consists of two beams. The first is a lever used to apply the torque to the fastener being tightened and serves also as the handle of the tool. Ad Use for Conveyor scales Platform scales Bench scales Silo Hopper and Tank Scales.

Filling and Bagging Machines Force and Torque Measurements in Industrial Automation. Ad Enabling you to solve the toughest problems in life science. Complete your research with top quality products.
